Math basics (optional)

Slides: html pdf

This chapter is not part of the course itself (there will not be questions at the exam on basic mathematics) but serves as a reminder of the important mathematical notions that are needed to understand this course. Students who have studied mathematics as a major can safely skip this part, as there is nothing fancy (although the section on information theory could be worth a read).

It is not supposed to replace any course in mathematics (we won’t show any proof and will skip what we do not need) but rather to provide a high-level understanding of the most important concepts and set the notations. Nothing should be really new to you, but it may be useful to have everything summarized at the same place.

References: Part I of (Goodfellow et al., 2016). Any mathematics textbook can be used in addition.

Linear algebra

Several mathematical objects are manipulated in linear algebra:

  • Scalars x are 0-dimensional values (single numbers, so to speak). They can either take real values (x \in \Re, e.g. x = 1.4573, floats in CS) or natural values (x \in \mathbb{N}, e.g. x = 3, integers in CS).

  • Vectors \mathbf{x} are 1-dimensional arrays of length d. The bold notation \mathbf{x} will be used in this course, but you may also be accustomed to the arrow notation \overrightarrow{x} used on the blackboard. When using real numbers, the vector space with d dimensions is noted \Re^d, so we can note \mathbf{x} \in \Re^d. Vectors are typically represented vertically to outline their d elements x_1, x_2, \ldots, x_d:

\mathbf{x} = \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_d \end{bmatrix}

  • Matrices A are 2-dimensional arrays of size (or shape) m \times n (m rows, n columns, A \in \Re^{m \times n}). They are represented by a capital letter to distinguish them from scalars (classically also in bold \mathbf{A} but not here). The element a_{ij} of a matrix A is the element on the i-th row and j-th column.

A = \begin{bmatrix} a_{11} & a_{12} & \cdots & a_{1n} \\ a_{21} & a_{22} & \cdots & a_{2n} \\ \vdots & \vdots & \ddots & \vdots \\ a_{m1} & a_{m2} & \cdots & a_{mn} \\ \end{bmatrix}

  • Tensors \mathcal{A} are arrays with more than two dimensions. We will not really do math on these objects, but they are useful internally (hence the name of the tensorflow library).

Vectors

A vector can be thought of as the coordinates of a point in an Euclidean space (such the 2D space), relative to the origin. A vector space relies on two fundamental operations, which are that:

  • Vectors can be added:

\mathbf{x} + \mathbf{y} = \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_d \end{bmatrix} + \begin{bmatrix} y_1 \\ y_2 \\ \vdots \\ y_d \end{bmatrix} = \begin{bmatrix} x_1 + y_1 \\ x_2 + y_2 \\ \vdots \\ x_d + y_d \end{bmatrix}

  • Vectors can be multiplied by a scalar:

a \, \mathbf{x} = a \, \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_d \end{bmatrix} = \begin{bmatrix} a \, x_1 \\ a \, x_2 \\ \vdots \\ a \, x_d \end{bmatrix}

Vector spaces allow additions of vectors. Source: https://mathinsight.org/image/vector_2d_add

These two operations generate a lot of nice properties (see https://en.wikipedia.org/wiki/Vector_space for a full list), including:

  • associativity: \mathbf{x} + (\mathbf{y} + \mathbf{z}) = (\mathbf{x} + \mathbf{y}) + \mathbf{z}
  • commutativity: \mathbf{x} + \mathbf{y} = \mathbf{y} + \mathbf{x}
  • the existence of a zero vector \mathbf{x} + \mathbf{0} = \mathbf{x}
  • inversion: \mathbf{x} + (-\mathbf{x}) = \mathbf{0}
  • distributivity: a \, (\mathbf{x} + \mathbf{y}) = a \, \mathbf{x} + a \, \mathbf{y}

Vectors have a norm (or length) ||\mathbf{x}||. The most intuitive one (if you know the Pythagoras theorem) is the Euclidean norm or L^2-norm, which sums the square of each element:

||\mathbf{x}||_2 = \sqrt{x_1^2 + x_2^2 + \ldots + x_d^2}

Other norms exist, distinguished by the subscript. The L^1-norm (also called Taxicab or Manhattan norm) sums the absolute value of each element:

||\mathbf{x}||_1 = |x_1| + |x_2| + \ldots + |x_d|

The p-norm generalizes the Euclidean norm to other powers p:

||\mathbf{x}||_p = (|x_1|^p + |x_2|^p + \ldots + |x_d|^p)^{\frac{1}{p}}

The infinity norm (or maximum norm) L^\infty returns the maximum element of the vector:

||\mathbf{x}||_\infty = \max(|x_1|, |x_2|, \ldots, |x_d|)

One important operation for vectors is the dot product (also called scalar product or inner product) between two vectors:

\langle \mathbf{x} \cdot \mathbf{y} \rangle = \langle \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_d \end{bmatrix} \cdot \begin{bmatrix} y_1 \\ y_2 \\ \vdots \\ y_d \end{bmatrix} \rangle = x_1 \, y_1 + x_2 \, y_2 + \ldots + x_d \, y_d

The dot product basically sums one by one the product of the elements of each vector. The angular brackets are sometimes omitted (\mathbf{x} \cdot \mathbf{y}) but we will use them in this course for clarity.

One can notice immediately that the dot product is symmetric:

\langle \mathbf{x} \cdot \mathbf{y} \rangle = \langle \mathbf{y} \cdot \mathbf{x} \rangle

and linear:

\langle (a \, \mathbf{x} + b\, \mathbf{y}) \cdot \mathbf{z} \rangle = a\, \langle \mathbf{x} \cdot \mathbf{z} \rangle + b \, \langle \mathbf{y} \cdot \mathbf{z} \rangle

The dot product is an indirect measurement of the angle \theta between two vectors:

\langle \mathbf{x} \cdot \mathbf{y} \rangle = ||\mathbf{x}||_2 \, ||\mathbf{y}||_2 \, \cos(\theta)

The dot product between two vectors is proportional to the cosine of the angle between the two vectors. Source: https://mathinsight.org/image/dot_product_projection_unit_vector

If you normalize the two vectors by dividing them by their norm (which is a scalar), we indeed have the cosine of the angle between them: The higher the normalized dot product, the more the two vectors point towards the same direction (cosine distance between two vectors).

\langle \displaystyle\frac{\mathbf{x}}{||\mathbf{x}||_2} \cdot \frac{\mathbf{y}}{||\mathbf{y}||_2} \rangle = \cos(\theta)

Matrices

Matrices are derived from vectors, so most of the previous properties will be true. Let’s consider this 4x3 matrix:

A = \begin{bmatrix} a_{11} & a_{12} & a_{13} \\ a_{21} & a_{22} & a_{23} \\ a_{31} & a_{32} & a_{33} \\ a_{41} & a_{42} & a_{43} \\ \end{bmatrix}

Each column of the matrix is a vector with 4 elements:

\mathbf{a}_1 = \begin{bmatrix} a_{11} \\ a_{21} \\ a_{31} \\ a_{41} \\ \end{bmatrix} \qquad \mathbf{a}_2 = \begin{bmatrix} a_{12} \\ a_{22} \\ a_{32} \\ a_{42} \\ \end{bmatrix} \qquad \mathbf{a}_3 = \begin{bmatrix} a_{13} \\ a_{23} \\ a_{33} \\ a_{43} \\ \end{bmatrix} \qquad

A m \times n matrix is therefore a collection of n vectors of size m put side by side column-wise:

A = \begin{bmatrix} \mathbf{a}_1 & \mathbf{a}_2 & \mathbf{a}_3\\ \end{bmatrix}

So all properties of the vector spaces (associativity, commutativity, distributivity) also apply to matrices, as additions and multiplications with a scalar are defined.

\alpha \, A + \beta \, B = \begin{bmatrix} \alpha\, a_{11} + \beta \, b_{11} & \alpha\, a_{12} + \beta \, b_{12} & \alpha\, a_{13} + \beta \, b_{13} \\ \alpha\, a_{21} + \beta \, b_{21} & \alpha\, a_{22} + \beta \, b_{22} & \alpha\, a_{23} + \beta \, b_{23} \\ \alpha\, a_{31} + \beta \, b_{31} & \alpha\, a_{32} + \beta \, b_{32} & \alpha\, a_{33} + \beta \, b_{33} \\ \alpha\, a_{41} + \beta \, b_{41} & \alpha\, a_{42} + \beta \, b_{42} & \alpha\, a_{43} + \beta \, b_{43} \\ \end{bmatrix}

Beware, you can only add matrices of the same dimensions m\times n. You cannot add a 2\times 3 matrix to a 5 \times 4 one.

The transpose A^T of a m \times n matrix A is a n \times m matrix, where the row and column indices are swapped:

A = \begin{bmatrix} a_{11} & a_{12} & \cdots & a_{1n} \\ a_{21} & a_{22} & \cdots & a_{2n} \\ \vdots & \vdots & \ddots & \vdots \\ a_{m1} & a_{m2} & \cdots & a_{mn} \\ \end{bmatrix}, \qquad A^T = \begin{bmatrix} a_{11} & a_{21} & \cdots & a_{m1} \\ a_{12} & a_{22} & \cdots & a_{m2} \\ \vdots & \vdots & \ddots & \vdots \\ a_{1n} & a_{2n} & \cdots & a_{mn} \\ \end{bmatrix}

This is also true for vectors, which become horizontal after transposition:

\mathbf{x} = \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_d \end{bmatrix}, \qquad \mathbf{x}^T = \begin{bmatrix} x_1 & x_2 & \ldots & x_d \end{bmatrix}

A very important operation is the matrix multiplication. If A is a m\times n matrix and B a n \times p matrix:

A=\begin{bmatrix} a_{11} & a_{12} & \cdots & a_{1n} \\ a_{21} & a_{22} & \cdots & a_{2n} \\ \vdots & \vdots & \ddots & \vdots \\ a_{m1} & a_{m2} & \cdots & a_{mn} \\ \end{bmatrix},\quad B=\begin{bmatrix} b_{11} & b_{12} & \cdots & b_{1p} \\ b_{21} & b_{22} & \cdots & b_{2p} \\ \vdots & \vdots & \ddots & \vdots \\ b_{n1} & b_{n2} & \cdots & b_{np} \\ \end{bmatrix}

we can multiply them to obtain a m \times p matrix:

C = A \times B =\begin{bmatrix} c_{11} & c_{12} & \cdots & c_{1p} \\ c_{21} & c_{22} & \cdots & c_{2p} \\ \vdots & \vdots & \ddots & \vdots \\ c_{m1} & c_{m2} & \cdots & c_{mp} \\ \end{bmatrix}

where each element c_{ij} is the dot product of the ith row of A and jth column of B:

c_{ij} = \langle A_{i, :} \cdot B_{:, j} \rangle = a_{i1}b_{1j} + a_{i2}b_{2j} +\cdots + a_{in}b_{nj}= \sum_{k=1}^n a_{ik}b_{kj}

n, the number of columns of A and rows of B, must be the same!

The element c_{ij} of C = A \times B is the dot product between the ith row of A and the jth column of B. Source: CC BY-NC-SA; Marcia Levitus

Thinking of vectors as n \times 1 matrices, we can multiply a matrix m \times n with a vector:

\mathbf{y} = A \times \mathbf{x} = \begin{bmatrix} a_{11} & a_{12} & \cdots & a_{1n} \\ a_{21} & a_{22} & \cdots & a_{2n} \\ \vdots & \vdots & \ddots & \vdots \\ a_{m1} & a_{m2} & \cdots & a_{mn} \\ \end{bmatrix} \times \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_n \end{bmatrix} = \begin{bmatrix} y_1 \\ y_2 \\ \vdots \\ y_m \end{bmatrix}

The result \mathbf{y} is a vector of size m. In that sense, a matrix A can transform a vector of size n into a vector of size m: A represents a projection from \Re^n to \Re^m.

A 2 \times 3 projection matrix allows to project any 3D vector onto a 2D plane. This is for example what happens inside a camera. Source: https://en.wikipedia.org/wiki/Homogeneous_coordinate

Note that the dot product between two vectors of size n is the matrix multiplication between the transpose of the first vector and the second one:

\mathbf{x}^T \times \mathbf{y} = \begin{bmatrix} x_1 & x_2 & \ldots & x_n \end{bmatrix} \times \begin{bmatrix} y_1 \\ y_2 \\ \vdots \\ y_n \end{bmatrix} = x_1 \, y_1 + x_2 \, y_2 + \ldots + x_n \, y_n = \langle \mathbf{x} \cdot \mathbf{y} \rangle

Square matrices of size n \times n can be inverted. The inverse A^{-1} of a matrix A is defined by:

A \times A^{-1} = A^{-1} \times A = I

where I is the identity matrix (a matrix with ones on the diagonal and 0 otherwise). Not all matrices have an inverse (those who don’t are called singular or degenerate). There are plenty of conditions for a matrix to be invertible (for example its determinant is non-zero, see https://en.wikipedia.org/wiki/Invertible_matrix), but they will not matter in this course. Non-square matrices are generally not invertible, but see the pseudoinverse (https://en.wikipedia.org/wiki/Moore%E2%80%93Penrose_inverse).

Matrix inversion allows to solve linear systems of equations. Given the problem:

\begin{cases} a_{11} \, x_1 + a_{12} \, x_2 + \ldots + a_{1n} \, x_n = b_1 \\ a_{21} \, x_1 + a_{22} \, x_2 + \ldots + a_{2n} \, x_n = b_2 \\ \ldots \\ a_{n1} \, x_1 + a_{n2} \, x_2 + \ldots + a_{nn} \, x_n = b_n \\ \end{cases}

which is equivalent to:

A \times \mathbf{x} = \mathbf{b}

we can multiply both sides to the left with A^{-1} (if it exists) and obtain:

\mathbf{x} = A^{-1} \times \mathbf{b}

Calculus

Functions

A univariate function f associates to any real number x \in \Re (or a subset of \Re called the support of the function) another (unique) real number f(x):

\begin{align} f\colon \quad \Re &\to \Re\\ x &\mapsto f(x) \end{align}

Example of univariate function, here the quadratic function f(x) = x^2 - 2 \, x + 1.

A multivariate function f associates to any vector \mathbf{x} \in \Re^n (or a subset) a real number f(\mathbf{x}):

\begin{align} f\colon \quad \Re^n &\to \Re\\ \mathbf{x} &\mapsto f(\mathbf{x}) \end{align}

The variables of the function are the elements of the vector. For low-dimensional vector spaces, it is possible to represent each element explicitly, for example:

\begin{align} f\colon \quad\Re^3 &\to \Re\\ x, y, z &\mapsto f(x, y, z),\end{align}

Example of a multivariate function f(x_1, x_2) mapping \Re^2 to \Re. Source: https://en.wikipedia.org/wiki/Function_of_several_real_variables

Vector fields associate to any vector \mathbf{x} \in \Re^n (or a subset) another vector (possibly of different size):

\begin{align} \overrightarrow{f}\colon \quad \Re^n &\to \Re^m\\ \mathbf{x} &\mapsto \overrightarrow{f}(\mathbf{x}),\end{align}

Vector field associating to each point of \Re^2 another vector. Source: https://en.wikipedia.org/wiki/Vector_field

The matrix-vector multiplication \mathbf{y} = A \times \mathbf{x} is a linear vector field, mapping any vector \mathbf{x} into another vector \mathbf{y}.

Differentiation

Derivatives

Differential calculus deals with the derivative of a function, a process called differentiation.

The derivative f'(x) or \displaystyle\frac{d f(x)}{dx} of a univariate function f(x) is defined as the local slope of the tangent to the function for a given value of x:

f'(x) = \lim_{h \to 0} \frac{f(x + h) - f(x)}{h}

The line passing through the points (x, f(x)) and (x + h, f(x + h)) becomes tangent to the function when h becomes very small:

The derivative of the function f(x) can be approximated by the slope of the line passing through (x, f(x)) and (x + h, f(x + h)) when h becomes very small.

The sign of the derivative tells you how the function behaves locally:

  • If the derivative is positive, increasing a little bit x increases the function f(x), so the function is locally increasing.
  • If the derivative is negative, increasing a little bit x decreases the function f(x), so the function is locally decreasing.

It basically allows you to measure the local influence of x on f(x): if I change a little bit the value x, what happens to f(x)? This will be very useful in machine learning.

A special case is when the derivative is equal to 0 in x. x is then called an extremum (or optimum) of the function, i.e. it can be a maximum or minimum.

If you differentiate f'(x) itself, you obtain the second-order derivative f''(x). You can repeat that process and obtain higher order derivatives.

For example, if x(t) represents the position x of an object depending on time t, the first-order derivative x'(t) denotes the speed of the object and the second-order derivative x''(t) its acceleration.

You can tell whether an extremum is a maximum or a minimum by looking at its second-order derivative:

  • If f''(x) > 0, the extremum is a minimum.
  • If f''(x) < 0, the extremum is a maximum.
  • If f''(x) = 0, the extremum is a saddle point.

Quadratic functions have only one extremum (here a minimum in -1), as their derivative is linear and is equal to zero for only one value.

The derivative of a multivariate function f(\mathbf{x}) is a vector of partial derivatives called the gradient of the function \nabla_\mathbf{x} \, f(\mathbf{x}):

\nabla_\mathbf{x} \, f(\mathbf{x}) = \begin{bmatrix} \displaystyle\frac{\partial f(\mathbf{x})}{\partial x_1} \\ \displaystyle\frac{\partial f(\mathbf{x})}{\partial x_2} \\ \ldots \\ \displaystyle\frac{\partial f(\mathbf{x})}{\partial x_n} \\ \end{bmatrix}

The subscript to the \nabla operator denotes with respect to (w.r.t) which variable the differentiation is done.

A partial derivative w.r.t. to particular variable (or element of the vector) is simply achieved by differentiating the function while considering all other variables to be constant. For example the function:

f(x, y) = x^2 + 3 \, x \, y + 4 \, x \, y^2 - 1

can be partially differentiated w.r.t. x and y as:

\begin{cases} \displaystyle\frac{\partial f(x, y)}{\partial x} = 2 \, x + 3\, y + 4 \, y^2 \\ \\ \displaystyle\frac{\partial f(x, y)}{\partial y} = 3 \, x + 8\, x \, y \end{cases}

The gradient can be generalized to vector fields, where the Jacobian or Jacobi matrix is a matrix containing all partial derivatives.

J = \begin{bmatrix} \dfrac{\partial \mathbf{f}}{\partial x_1} & \cdots & \dfrac{\partial \mathbf{f}}{\partial x_n} \end{bmatrix} = \begin{bmatrix} \dfrac{\partial f_1}{\partial x_1} & \cdots & \dfrac{\partial f_1}{\partial x_n}\\ \vdots & \ddots & \vdots\\ \dfrac{\partial f_m}{\partial x_1} & \cdots & \dfrac{\partial f_m}{\partial x_n} \end{bmatrix}

Analytical properties

The analytical form of the derivative of most standard mathematical functions is known. The following table lists the most useful ones in this course:

Function f(x) Derivative f'(x)
 x  1
x^p  p \, x^{p-1}
\displaystyle\frac{1}{x} - \displaystyle\frac{1}{x^2}
 e^x e^x
\ln x  \displaystyle\frac{1}{x}

Differentiation is linear, which means that if we define the function:

h(x) = a \, f(x) + b \, g(x)

its derivative is:

h'(x) = a \, f'(x) + b \, g'(x)

A product of functions can also be differentiated analytically:

(f(x) \times g(x))' = f'(x) \times g(x) + f(x) \times g'(x)

Example

f(x) = x^2 \, e^x

f'(x) = 2 \, x \, e^x + x^2 \cdot e^x

Chain rule

A very important concept for neural networks is the chain rule, which tells how to differentiate function compositions (functions of a function) of the form:

(f \circ g) (x) = f(g(x))

The derivative of f \circ g is:

(f \circ g)' (x) = (f' \circ g) (x) \times g'(x)

The chain rule may be more understandable using Leibniz’s notation:

\frac{d f \circ g (x)}{dx} = \frac{d f (g (x))}{d g(x)} \times \frac{d g (x)}{dx}

By posing y = g(x) as an intermediary variable, it becomes:

\frac{d f(y)}{dx} = \frac{d f(y)}{dy} \times \frac{dy}{dx}

Example

The function :

h(x) = \frac{1}{2 \, x + 1}

is the function composition of g(x) = 2 \, x + 1 and f(x) = \displaystyle\frac{1}{x}, whose derivatives are known:

g'(x) = 2 f'(x) = -\displaystyle\frac{1}{x^2}

Its derivative according to the chain rule is:

h'(x) = f'(g(x)) \times g'(x) = -\displaystyle\frac{1}{(2 \, x + 1)^2} \times 2

The chain rule also applies to partial derivatives:

\displaystyle\frac{\partial f \circ g (x, y)}{\partial x} = \frac{\partial f \circ g (x, y)}{\partial g (x, y)} \times \frac{\partial g (x, y)}{\partial x}

and gradients:

\nabla_\mathbf{x} \, f \circ g (\mathbf{x}) = \nabla_{g(\mathbf{x})} \, f \circ g (\mathbf{x}) \times \nabla_\mathbf{x} \, g (\mathbf{x})

Integration

The opposite operation of differentation is integration. Given a function f(x), we search a function F(x) whose derivative is f(x):

F'(x) = f(x)

The integral of f is noted:

F(x) = \int f(x) \, dx

dx being an infinitesimal interval (similar h in the definition of the derivative). There are tons of formal definitions of integrals (Riemann, Lebesgue, Darboux…) and we will not get into details here as we will not use integrals a lot.

The most important to understand for now is maybe that the integral of a function is the area under the curve. The area under the curve of a function f on the interval [a, b] is:

\mathcal{S} = \int_a^b f(x) \, dx

The integral of f on [a, b] is the area of the surface between the function and the x-axis. Note that it can become negative when the function is mostly negative on [a, b]. Source: https://www.math24.net/riemann-sums-definite-integral/

One way to approximate this surface is to split the interval [a, b] into n intervals of width dx with the points x_1, x_2, \ldots, x_n. This defines n rectangles of width dx and height f(x_i), so their surface is f(x_i) \, dx. The area under the curve can then be approximated by the sum of the surfaces of all these rectangles.

The interval[a, b] can be split in n small intervals of width dx, defining n rectangles whose sum is close to the area under the curve. Source: https://www.math24.net/riemann-sums-definite-integral/

When n \to \infty, or equivalently dx \to 0, the sum of these rectangular areas (called the Riemann sum) becomes exactly the area under the curve. This is the definition of the definite integral:

\int_a^b f(x) \, dx = \lim_{dx \to 0} \sum_{i=1}^n f(x_i) \, dx

Very roughly speaking, the integral can be considered as the equivalent of a sum for continuous functions.

Probability theory

Discrete probability distributions

Let’s note X a discrete random variable with n realizations (or outcomes) x_1, \ldots, x_n.

  • A coin has two outcomes: head and tails.
  • A dice has six outcomes: 1, 2, 3, 4, 5, 6.

The probability that X takes the value x_i is defined in the frequentist sense by the relative frequency of occurrence, i.e. the proportion of samples having the value x_i, when the total number N of samples tends to infinity:

P(X = x_i) = \frac{\text{Number of favorable cases}}{\text{Total number of samples}}

The set of probabilities \{P(X = x_i)\}_{i=1}^n define the probability distribution for the random variable (or probability mass function, pmf). By definition, we have 0 \leq P(X = x_i) \leq 1 and the probabilities have to respect:

\sum_{i=1}^n P(X = x_i) = 1

An important metric for a random variable is its mathematical expectation or expected value, i.e. its “mean” realization weighted by the probabilities:

\mathbb{E}[X] = \sum_{i=1}^n P(X = x_i) \, x_i

The expectation does not even need to be a valid realization:

\mathbb{E}[\text{Coin}] = \frac{1}{2} \, 0 + \frac{1}{2} \, 1 = 0.5

\mathbb{E}[\text{Dice}] = \frac{1}{6} \, (1 + 2 + 3 + 4 + 5 + 6) = 3.5

We can also compute the mathematical expectation of functions of a random variable:

\mathbb{E}[f(X)] = \sum_{i=1}^n P(X = x_i) \, f(x_i)

The variance of a random variable is the squared deviation around the mean:

\text{Var}(X) = \mathbb{E}[(X - \mathbb{E}[X])^2] = \sum_{i=1}^n P(X = x_i) \, (x_i - \mathbb{E}[X])^2

Variance of a coin:

\text{Var}(\text{Coin}) = \frac{1}{2} \, (0 - 0.5)^2 + \frac{1}{2} \, (1 - 0.5)^2 = 0.25

Variance of a dice:

\text{Var}(\text{Dice}) = \frac{1}{6} \, ((1-3.5)^2 + (2-3.5)^2 + (3-3.5)^2 + (4-3.5)^2 + (5-3.5)^2 + (6-3.5)^2) = \frac{105}{36}

Continuous probability distributions

Continuous random variables can take infinitely many values in a continuous interval, e.g. \Re or some subset. The closed set of values they can take is called the support \mathcal{D}_X of the probability distribution. The probability distribution is described by a probability density function (pdf) f(x).

Normal distributions are continuous distributions. The area under the curve is always 1.

The pdf of a distribution must be positive (f(x) \geq 0 \, \forall x \in \mathcal{D}_X) and its integral (area under the curve) must be equal to 1:

\int_{x \in \mathcal{D}_X} f(x) \, dx = 1

The pdf does not give the probability of taking a particular value x (it is 0), but allows to get the probability that a value lies in a specific interval:

P(a \leq X \leq b) = \int_{a}^b f(x) \, dx

One can however think of the pdf as the likelihood that a value x comes from that distribution.

For continuous distributions, the mathematical expectation is now defined by an integral instead of a sum:

\mathbb{E}[X] = \int_{x \in \mathcal{D}_X} f(x) \, x \, dx

the variance also:

\text{Var}(X) = \int_{x \in \mathcal{D}_X} f(x) \, (x - \mathbb{E}[X])^2 \, dx

or a function of the random variable:

\mathbb{E}[g(X)] = \int_{x \in \mathcal{D}_X} f(x) \, g(x) \, dx

Note that the expectation operator is linear:

\mathbb{E}[a \, X + b \, Y] = a \, \mathbb{E}[X] + b \, \mathbb{E}[Y]

but not the variance, even when the distributions are independent:

\text{Var}[a \, X + b \, Y] = a^2 \, \text{Var}[X] + b^2 \, \text{Var}[Y]

Standard distributions

Probability distributions can in principle have any form: f(x) is unknown. However, specific parameterized distributions can be very useful: their pmf/pdf is fully determined by a couple of parameters.

  • The Bernouilli distribution is a binary (discrete, 0 or 1) distribution with a parameter p specifying the probability to obtain the outcome 1 (e.g. a coin):

P(X = 1) = p \; \text{and} \; P(X=0) = 1 - p P(X=x) = p^x \, (1-p)^{1-x} \mathbb{E}[X] = p

  • The Multinouilli or categorical distribution is a discrete distribution with k realizations (e.g. a dice). Each realization x_i is associated with a parameter p_i >0 representing its probability. We have \sum_i p_i = 1.

P(X = x_i) = p_i

  • The uniform distribution has an equal and constant probability of returning values between a and b, never outside this range. It is parameterized by the start of the range a and the end of the range b. Its support is [a, b]. The pdf of the uniform distribution \mathcal{U}(a, b) is defined on [a, b] as:

f(x; a, b) = \frac{1}{b - a}

  • The normal distribution is the most frequently encountered continuous distribution. It is parameterized by two parameters: the mean \mu and the variance \sigma^2 (or standard deviation \sigma). Its support is \Re. The pdf of the normal distribution \mathcal{N}(\mu, \sigma) is defined on \Re as:

f(x; \mu, \sigma) = \frac{1}{\sqrt{2\,\pi\,\sigma^2}} \, e^{-\displaystyle\frac{(x - \mu)^2}{2\,\sigma^2}}

  • The exponential distribution is the probability distribution of the time between events in a Poisson point process, i.e., a process in which events occur continuously and independently at a constant average rate. It is parameterized by one parameter: the rate \lambda. Its support is \Re^+ (x > 0). The pdf of the exponential distribution is defined on \Re^+ as:

f(x; \lambda) = \lambda \, e^{-\lambda \, x}

Joint and conditional probabilities

Let’s now suppose that we have two random variables X and Y with different probability distributions P(X) and P(Y). The joint probability P(X, Y) denotes the probability of observing the realizations x and y at the same time:

P(X=x, Y=y)

If the random variables are independent, we have:

P(X=x, Y=y) = P(X=x) \, P(Y=y)

If you know the joint probability, you can compute the marginal probability distribution of each variable:

P(X=x) = \sum_y P(X=x, Y=y)

The same is true for continuous probability distributions:

f(x) = \int f(x, y) \, dy

Some useful information between two random variables is the conditional probability. P(X=x | Y=y) is the conditional probability that X=x, given that Y=y is observed.

  • Y=y is not random anymore: it is a fact (at least theoretically).

  • You wonder what happens to the probability distribution of X now that you know the value of Y.

Conditional probabilities are linked to the joint probability by:

P(X=x | Y=y) = \frac{P(X=x, Y=y)}{P(Y=y)}

If X and Y are independent, we have P(X=x | Y=y) = P(X=x) (knowing Y does not change anything to the probability distribution of X). We can use the same notation for the complete probability distributions:

P(X | Y) = \frac{P(X, Y)}{P(Y)}

Example

You ask 50 people whether they like cats or dogs:

  • 18 like both cats and dogs.
  • 21 like only dogs.
  • 5 like only cats.
  • 6 like none of them.

We consider loving cats and dogs as random variables (and that our sample size is big enough to use probabilities…). Among the 23 who love cats, which proportion also loves dogs?

Answer

We have P(\text{dog}) = \displaystyle\frac{18+21}{50}= \displaystyle\frac{39}{50} and P(\text{cat}) = \displaystyle\frac{18+5}{50} = \frac{23}{50}.

The joint probability of loving both cats and dogs is P(\text{cat}, \text{dog}) = \displaystyle\frac{18}{50}.

The conditional probability of loving dogs given one loves cats is:

P(\text{dog} | \text{cat}) = \displaystyle\frac{P(\text{cat}, \text{dog})}{P(\text{cat})} = \frac{\frac{18}{50}}{\frac{23}{50}} = \frac{18}{23}

Bayes’ rule

Noticing that the definition of conditional probabilities is symmetric:

P(X, Y) = P(X | Y) \, P(Y) = P(Y | X) \, P(X)

we can obtain the Bayes’ rule:

P(Y | X) = \frac{P(X|Y) \, P(Y)}{P(X)}

It is very useful when you already know P(X|Y) and want to obtain P(Y|X) (Bayesian inference).

  • P(Y | X) is called the posterior probability.

  • P(X | Y) is called the likelihood.

  • P(Y) is called the prior probability (belief).

  • P(X) is called the model evidence or marginal likelihood.

Example

Let’s consider a disease D (binary random variable) and a medical test T (also binary). The disease affects 10% of the general population:

P(D=1)= 0.1 \qquad \qquad P(D=0)=0.9

When a patient has the disease, the test is positive 80% of the time (true positives):

P(T=1 | D=1) = 0.8 \qquad \qquad P(T=0 | D=1) = 0.2

When a patient does not have the disease, the test is still positive 10% of the time (false positives):

P(T=1 | D=0) = 0.1 \qquad \qquad P(T=0 | D=0) = 0.9

Given that the test is positive, what is the probability that the patient is ill?

Answer

\begin{aligned} P(D=1|T=1) &= \frac{P(T=1 | D=1) \, P(D=1)}{P(T=1)} \\ &\\ &= \frac{P(T=1 | D=1) \, P(D=1)}{P(T=1 | D=1) \, P(D=1) + P(T=1 | D=0) \, P(D=0)} \\ &\\ &= \frac{0.8 \times 0.1}{0.8 \times 0.1 + 0.1 \times 0.9} \\ &\\ & = 0.47 \\ \end{aligned}

Statistics

Monte Carlo sampling

Random sampling or Monte Carlo sampling (MC) consists of taking N samples x_i out of the distribution X (discrete or continuous) and computing the sample average:

\mathbb{E}[X] = \mathbb{E}_{x \sim X} [x] \approx \frac{1}{N} \, \sum_{i=1}^N x_i

Samples taken from a normal distribution will mostly be around the mean.

More samples will be obtained where f(x) is high (x is probable), so the average of the sampled data will be close to the expected value of the distribution.

Law of big numbers

As the number of identically distributed, randomly generated variables increases, their sample mean (average) approaches their theoretical mean.

MC estimates are only correct when:

  • the samples are i.i.d (independent and identically distributed):

    • independent: the samples must be unrelated with each other.

    • identically distributed: the samples must come from the same distribution X.

  • the number of samples is large enough. Usually N > 30 for simple distributions.

One can estimate any function of the random variable with random sampling:

\mathbb{E}[f(X)] = \mathbb{E}_{x \sim X} [f(x)] \approx \frac{1}{N} \, \sum_{i=1}^N f(x_i)

Sampling can be used to estimate \pi: when sampling x and y uniformly in [0, 1], the proportion of points with a norm smaller than tends to \pi/4. Source: https://towardsdatascience.com/an-overview-of-monte-carlo-methods-675384eb1694

Central limit theorem

Suppose we have an unknown distribution X with expected value \mu = \mathbb{E}[X] and variance \sigma^2. We can take randomly N samples from X to compute the sample average:

S_N = \frac{1}{N} \, \sum_{i=1}^N x_i

The Central Limit Theorem (CLT) states that:

The distribution of sample averages is normally distributed with mean \mu and variance \frac{\sigma^2}{N}.

S_N \sim \mathcal{N}(\mu, \frac{\sigma}{\sqrt{N}})

If we perform the sampling multiple times, even with few samples, the average of the sampling averages will be very close to the expected value. The more samples we get, the smaller the variance of the estimates. Although the distribution X can be anything, the sampling averages are normally distributed.

Estimators

CLT shows that the sampling average is an unbiased estimator of the expected value of a distribution:

\mathbb{E}[S_N] = \mathbb{E}[X]

An estimator is a random variable used to measure parameters of a distribution (e.g. its expectation). The problem is that estimators can generally be biased.

Take the example of a thermometer M measuring the temperature T. T is a random variable (normally distributed with \mu=20 and \sigma=10) and the measurements M relate to the temperature with the relation:

M = 0.95 \, T + 0.65

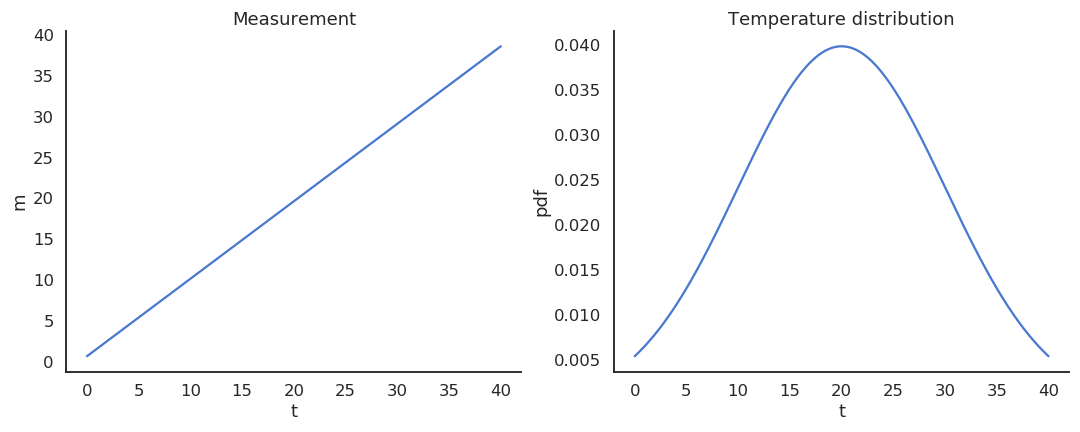

Left: measurement as a function of the temperature. Right: distribution of temperature.

The thermometer is not perfect, but do random measurements allow us to estimate the expected value of the temperature?

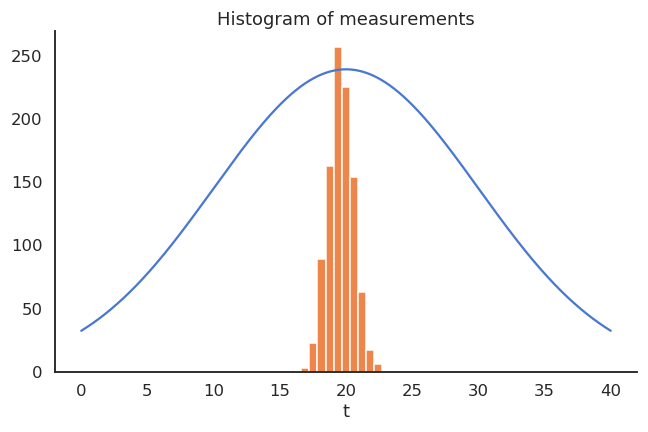

We could repeatedly take 100 random samples of the thermometer and see how the distribution of sample averages look like:

But, as the expectation is linear, we actually have:

\mathbb{E}[M] = \mathbb{E}[0.95 \, T + 0.65] = 0.95 \, \mathbb{E}[T] + 0.65 = 19.65 \neq \mathbb{E}[T]

The thermometer is a biased estimator of the temperature.

Let’s note \theta a parameter of a probability distribution X that we want to estimate (it does not have to be its mean). An estimator \hat{\theta} is a random variable mapping the sample space of X to a set of sample estimates.

  • The bias of an estimator is the mean error made by the estimator:

\mathcal{B}(\hat{\theta}) = \mathbb{E}[\hat{\theta} - \theta] = \mathbb{E}[\hat{\theta}] - \theta

  • The variance of an estimator is the deviation of the samples around the expected value:

\text{Var}(\hat{\theta}) = \mathbb{E}[(\hat{\theta} - \mathbb{E}[\hat{\theta}] )^2]

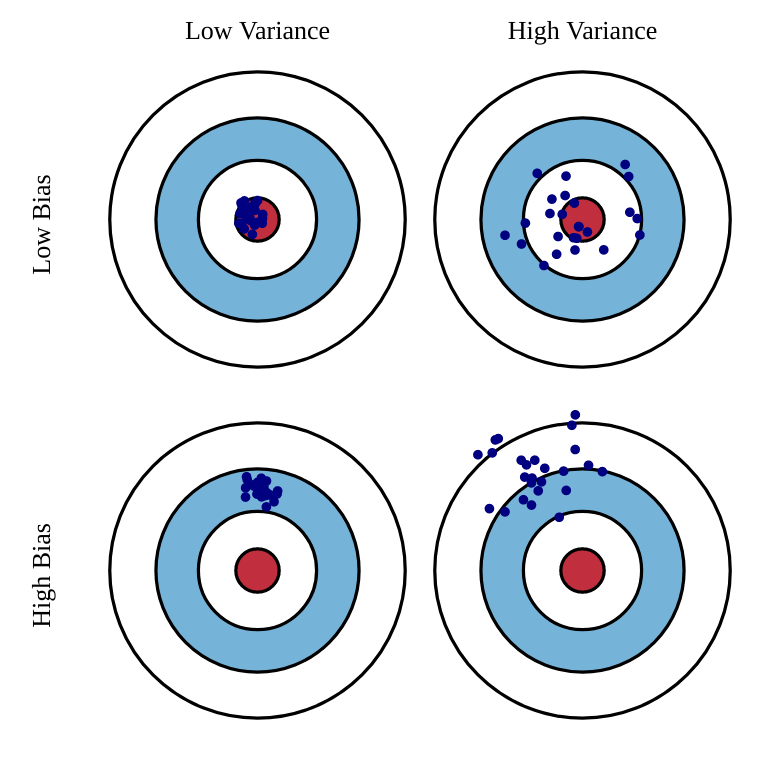

Ideally, we would like estimators with:

  • low bias: the estimations are correct on average (= equal to the true parameter).

  • low variance: we do not need many estimates to get a correct estimate (CLT: \frac{\sigma}{\sqrt{N}})

Unfortunately, the perfect estimator does not exist in practice. One usually talks of a bias/variance trade-off: if you have a small bias, you will have a high variance, or vice versa. In machine learning, bias corresponds to underfitting, variance to overfitting.

Information theory

Entropy

Information theory (a field founded by Claude Shannon) asks how much information is contained in a probability distribution. Information is related to surprise or uncertainty: are the outcomes of a random variable surprising?

  • Almost certain outcomes (P \sim 1) are not surprising because they happen all the time.

  • Almost impossible outcomes (P \sim 0) are very surprising because they are very rare.

Self-information.

A useful measurement of how surprising is an outcome x is the self-information:

I (x) = - \log P(X = x)

Depending on which log is used, self-information has different units, but it is just a rescaling, the base never matters:

  • \log_2: bits or shannons.
  • \log_e = \ln: nats.

The entropy (or Shannon entropy) of a probability distribution is the expected value of the self-information of its outcomes:

H(X) = \mathbb{E}_{x \sim X} [I(x)] = \mathbb{E}_{x \sim X} [- \log P(X = x)]

It measures the uncertainty, randomness or information content of the random variable.

In the discrete case:

H(X) = - \sum_x P(x) \, \log P(x)

In the continuous case:

H(X) = - \int_x f(x) \, \log f(x) \, dx

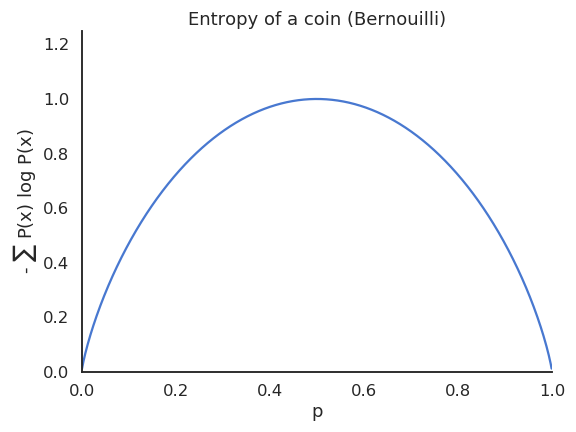

The entropy of a Bernouilli variable is maximal when both outcomes are equiprobable. If a variable is deterministic, its entropy is minimal and equal to zero.

The entropy of a Bernouilli distribution is maximal when the two outcomes are equiprobable.

The joint entropy of two random variables X and Y is defined by:

H(X, Y) = \mathbb{E}_{x \sim X, y \sim Y} [- \log P(X=x, Y=y)]

The conditional entropy of two random variables X and Y is defined by:

H(X | Y) = \mathbb{E}_{x \sim X, y \sim Y} [- \log P(X=x | Y=y)] = \mathbb{E}_{x \sim X, y \sim Y} [- \log \frac{P(X=x , Y=y)}{P(Y=y)}]

If the variables are independent, we have:

H(X, Y) = H(X) + H(Y) H(X | Y) = H(X)

Both are related by:

H(X | Y) = H(X, Y) - H(Y)

The equivalent of Bayes’ rule is:

H(Y |X) = H(X |Y) + H(Y) - H(X)

Mutual Information, cross-entropy and Kullback-Leibler divergence

The most important information measurement between two variables is the mutual information MI (or information gain):

I(X, Y) = H(X) - H(X | Y) = H(Y) - H(Y | X)

It measures how much information the variable X holds on Y:

  • If the two variables are independent, the MI is 0 : X is as random, whether you know Y or not.

I (X, Y) = 0

  • If the two variables are dependent, knowing Y gives you information on X, which becomes less random, i.e. less uncertain / surprising.

I (X, Y) > 0

If you can fully predict X when you know Y, it becomes deterministic (H(X|Y)=0) so the mutual information is maximal (I(X, Y) = H(X)).

The cross-entropy between two distributions X and Y is defined as:

H(X, Y) = \mathbb{E}_{x \sim X}[- \log P(Y=x)]

Beware that the notation H(X, Y) is the same as the joint entropy, but it is a different concept!

The cross-entropy measures the overlap between two probability distributions.

The cross-entropy measures the negative log-likelihood that a sample x taken from the distribution X could also come from the distribution Y. More exactly, it measures how many bits of information one would need to distinguish the two distributions X and Y.

H(X, Y) = \mathbb{E}_{x \sim X}[- \log P(Y=x)]

If the two distributions are the same almost anywhere, one cannot distinguish samples from the two distributions, the cross-entropy is the same as the entropy of X. If the two distributions are completely different, one can tell whether a sample Z comes from X or Y, the cross-entropy is higher than the entropy of X.

In practice, the Kullback-Leibler divergence \text{KL}(X ||Y) is a better measurement of the similarity (statistical distance) between two probability distributions:

\text{KL}(X ||Y) = \mathbb{E}_{x \sim X}[- \log \frac{P(Y=x)}{P(X=x)}]

It is linked to the cross-entropy by:

\text{KL}(X ||Y) = H(X, Y) - H(X)

If the two distributions are the same almost anywhere, the KL divergence is zero. If the two distributions are different, the KL divergence is positive. Minimizing the KL between two distributions is the same as making the two distributions “equal”. But remember: the KL is not a metric, as it is not symmetric.
