Advantage actor-critic (A2C, A3C)

Slides: html pdf

Distributed actor-critic

Let’s consider an n-step advantage actor-critic architecture where the Q-value of the action (s_t, a_t) is approximated by the n-step return:

Q^{\pi_\theta}(s_t, a_t) \approx R_t^n = \sum_{k=0}^{n-1} \gamma^{k} \, r_{t+k+1} + \gamma^n \, V_\varphi(s_{t+n})

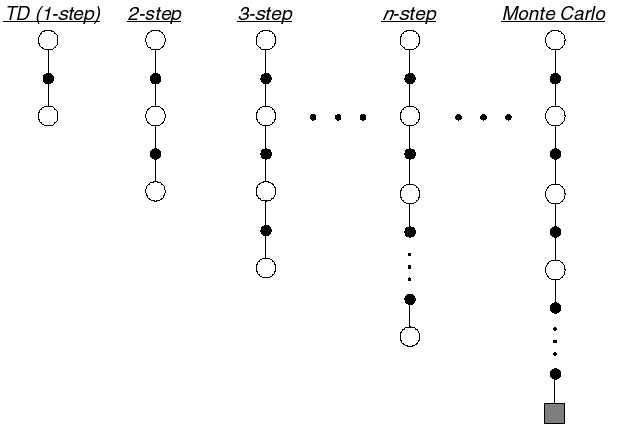

n-step returns. Source: (Sutton and Barto, 1998).

The actor \pi_\theta(s, a) uses PG with baseline to learn the policy:

\nabla_\theta \mathcal{J}(\theta) = \mathbb{E}_{s_t \sim \rho_\theta, a_t \sim \pi_\theta}[\nabla_\theta \log \pi_\theta (s_t, a_t) \, (R_t^n - V_\varphi(s_t)) ]

The critic V_\varphi(s) approximates the value of each state by minimizing the mse:

\mathcal{L}(\varphi) = \mathbb{E}_{s_t \sim \rho_\theta, a_t \sim \pi_\theta}[(R^n_t - V_\varphi(s_t))^2]

Advantage actor-critic.

The advantage actor-critic is strictly on-policy:

• The critic must evaluate actions selected the current version of the actor \pi_\theta, not an old version or another policy.
• The actor must learn from the current value function V^{\pi_\theta} \approx V_\varphi.

\begin{cases} \nabla_\theta \mathcal{J}(\theta) = \mathbb{E}_{s_t \sim \rho_\theta, a_t \sim \pi_\theta}[\nabla_\theta \log \pi_\theta (s_t, a_t) \, (R^n_t - V_\varphi(s_t)) ] \\ \\ \mathcal{L}(\varphi) = \mathbb{E}_{s_t \sim \rho_\theta, a_t \sim \pi_\theta}[(R^n_t - V_\varphi(s_t))^2] \\ \end{cases}

We cannot use an experience replay memory to deal with the correlated inputs, as it is only for off-policy methods. We cannot either get an uncorrelated batch of transitions by acting sequentially with a single agent.

A simple solution is to have multiple actors with the same weights \theta interacting in parallel with different copies of the environment: distributed learning.

Distributed learning. Source: https://ray.readthedocs.io/en/latest/rllib.html

Each rollout worker (actor) starts an episode in a different state: at any point of time, the workers will be in uncorrelated states. From time to time, the workers all send their experienced transitions to the learner which updates the policy using a batch of uncorrelated transitions. After the update, the workers use the new policy.

Distributed RL

• Initialize global policy or value network \theta.

• Initialize N copies of the environment in different states.

• while True:

  • for each worker in parallel:

    • Copy the global network parameters \theta to each worker:

    \theta_k \leftarrow \theta

    • Initialize an empty transition buffer \mathcal{D}_k.

    • Perform d steps with the worker on its copy of the environment.

    • Append each transition (s, a, r, s') to the transition buffer.

  • join(): wait for each worker to terminate.

  • Gather the N transition buffers into a single buffer \mathcal{D}.

  • Update the global network on \mathcal{D} to obtain new weights \theta.

Distributed learning can be used for any deep RL algorithm, including DQN variants. Distributed DQN variants include GORILA, IMPALA, APE-X, R2D2.”All” you need is one (or more) GPU for training the global network and N CPU cores for the workers. The workers fill the ERM much more quickly.

In practice, managing the communication between the workers and the global network through processes can be quite painful. There are some frameworks abstracting the dirty work, such as RLlib https://ray.readthedocs.io/en/latest/rllib.html.

rllib framework. Source: https://ray.readthedocs.io/en/latest/rllib.html

Having multiple workers interacting with different environments is easy in simulation (Atari games). With physical environments, working in real time, it requires lots of money…

A3C: Asynchronous advantage actor-critic

(Mnih et al., 2016) proposed the A3C algorithm (asynchronous advantage actor-critic). The stochastic policy \pi_\theta is produced by the actor with weights \theta and learned using :

\nabla_\theta \mathcal{J}(\theta) = \mathbb{E}_{s_t \sim \rho_\theta, a_t \sim \pi_\theta}[\nabla_\theta \log \pi_\theta (s_t, a_t) \, (R^n_t - V_\varphi(s_t)) ]

The value of a state V_\varphi(s) is produced by the critic with weights \varphi, which minimizes the mse with the n-step return:

\mathcal{L}(\varphi) = \mathbb{E}_{s_t \sim \rho_\theta, a_t \sim \pi_\theta}[(R^n_t - V_\varphi(s_t))^2]

R^n_t = \sum_{k=0}^{n-1} \gamma^{k} \, r_{t+k+1} + \gamma^n \, V_\varphi(s_{t+n})

Both the actor and the critic are trained on batches of transitions collected using parallel workers. Two things are different from the general distributed approach: workers compute partial gradients and updates are asynchronous.

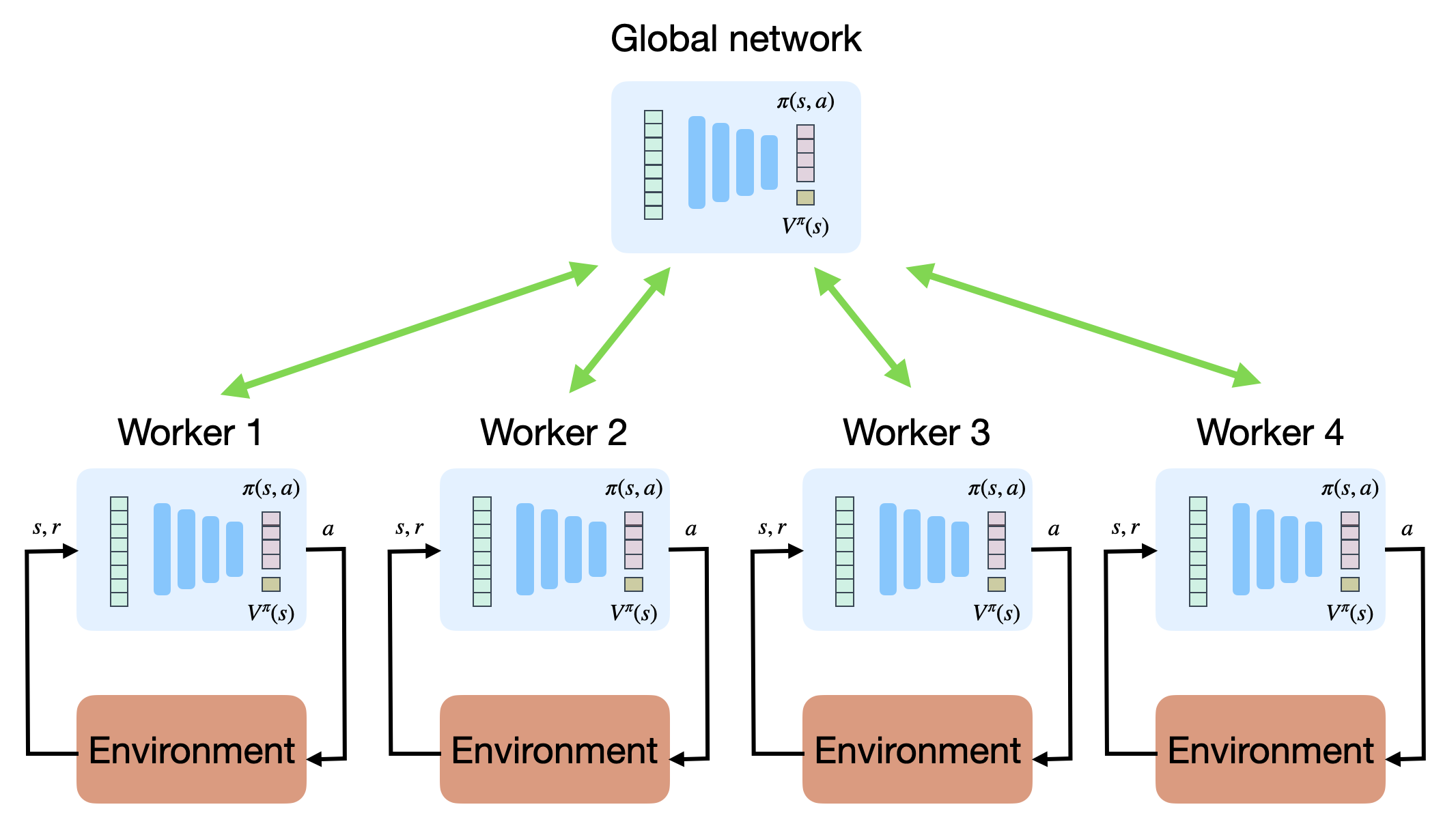

A3C distributed architecture (Mnih et al., 2016).

Worker

• def worker(\theta, \varphi):

  • Initialize empty transition buffer \mathcal{D}. Initialize the environment to the last state visited by this worker.

  • for n steps:

    • Select an action using \pi_\theta, store the transition in the transition buffer.

  • for each transition in \mathcal{D}:

    • Compute the n-step return in each state

    R^n_t = \sum_{k=0}^{n-1} \gamma^{k} \, r_{t+k+1} + \gamma^n \, V_\varphi(s_{t+n})

  • Compute policy gradient for the actor on the transition buffer:

  d\theta = \nabla_\theta \mathcal{J}(\theta) = \frac{1}{n} \sum_{t=1}^n \nabla_\theta \log \pi_\theta (s_t, a_t) \, (R^n_t - V_\varphi(s_t))

  • Compute value gradient for the critic on the transition buffer:

  d\varphi = \nabla_\varphi \mathcal{L}(\varphi) = -\frac{1}{n} \sum_{t=1}^n (R^n_t - V_\varphi(s_t)) \, \nabla_\varphi V_\varphi(s_t)

  • return d\theta, d\varphi

A2C algorithm

• Initialize actor \theta and critic \varphi.

• Initialize K workers with a copy of the environment.

• for t \in [0, T_\text{total}]:

  • for K workers in parallel:

    • d\theta_k, d\varphi_k = worker(\theta, \varphi)

  • join()

  • Merge all gradients:

  d\theta = \frac{1}{K} \sum_{i=1}^K d\theta_k \; ; \; d\varphi = \frac{1}{K} \sum_{i=1}^K d\varphi_k

  • Update the actor and critic using gradient ascent/descent:

  \theta \leftarrow \theta + \eta \, d\theta \; ; \; \varphi \leftarrow \varphi - \eta \, d\varphi

The previous algorithm depicts A2C, the synchronous version of A3C. A2C synchronizes the workers (threads), i.e. it waits for the K workers to finish their job before merging the gradients and updating the global networks.

A3C is asynchronous:

• The partial gradients are applied to the global networks as soon as they are available.
• No need to wait for all workers to finish their job.

As the workers are not synchronized, this means that one worker could be copying the global networks \theta and \varphi while another worker is writing them. This is called a Hogwild! update (Niu et al., 2011): no locks, no semaphores. Many workers can read/write the same data. It turns out NN are robust enough for this kind of updates.

A3C: asynchronous updates

• Initialize actor \theta and critic \varphi.

• Initialize K workers with a copy of the environment.

• for K workers in parallel:

  • for t \in [0, T_\text{total}]:

    • Copy the global networks \theta and \varphi.

    • Compute partial gradients:

    d\theta_k, d\varphi_k = \text{worker}(\theta, \varphi)

    • Update the global actor and critic using the partial gradients:

    \theta \leftarrow \theta + \eta \, d\theta_k

    \varphi \leftarrow \varphi - \eta \, d\varphi_k

A3C does not use an experience replay memory as DQN. Instead, it uses multiple parallel workers to distribute learning. Each worker has a copy of the actor and critic networks, as well as an instance of the environment. Weight updates are synchronized regularly though a master network using Hogwild!-style updates (every n=5 steps!). Because the workers learn different parts of the state-action space, the weight updates are not very correlated.

A3C works best on shared-memory systems (multi-core) as communication costs between GPUs are huge. A3C set a new record for Atari games in 2016. The main advantage is that the workers gather experience in parallel: training is much faster than with DQN. LSTMs can be used to improve the performance.

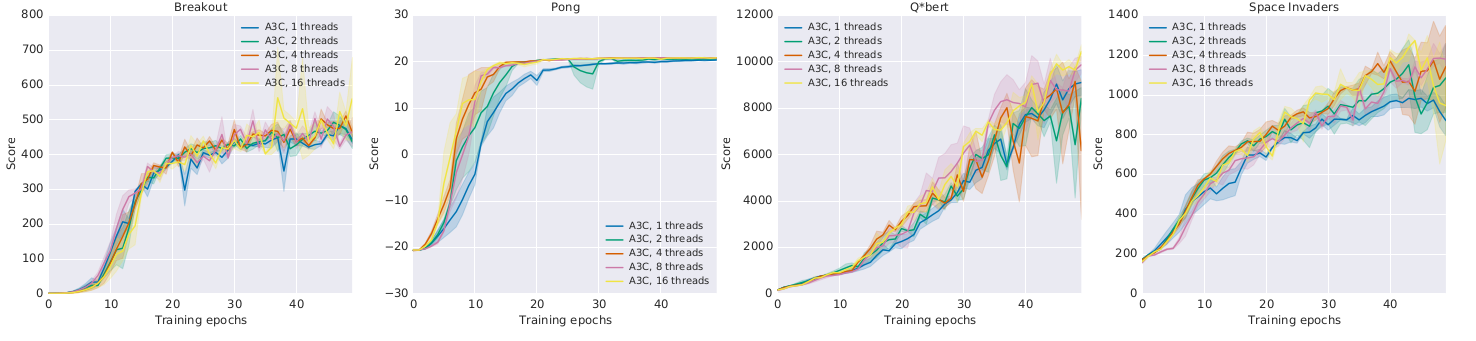

Learning is only marginally better with more threads:

A3C results (Mnih et al., 2016).

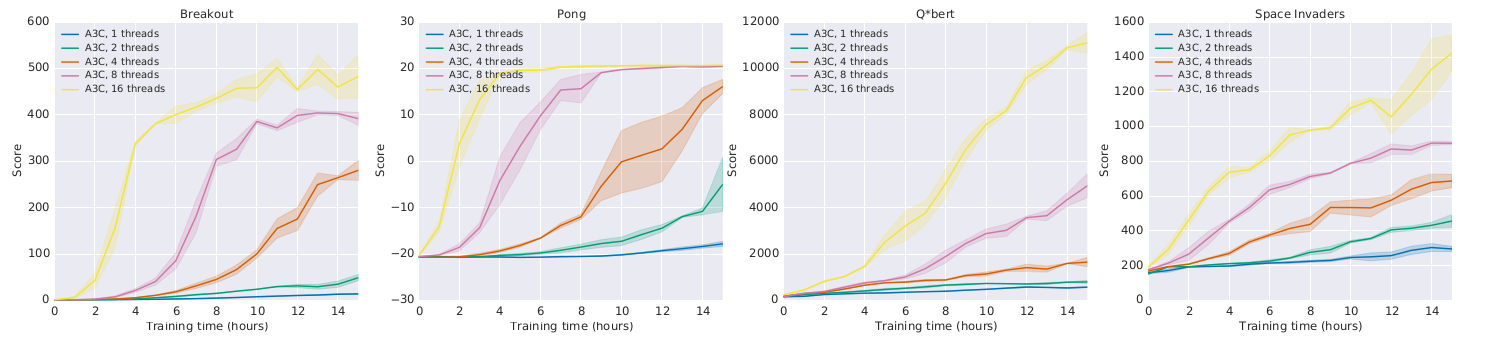

but much faster!

A3C results (Mnih et al., 2016).

A3C came up in 2016. A lot of things happened since then…

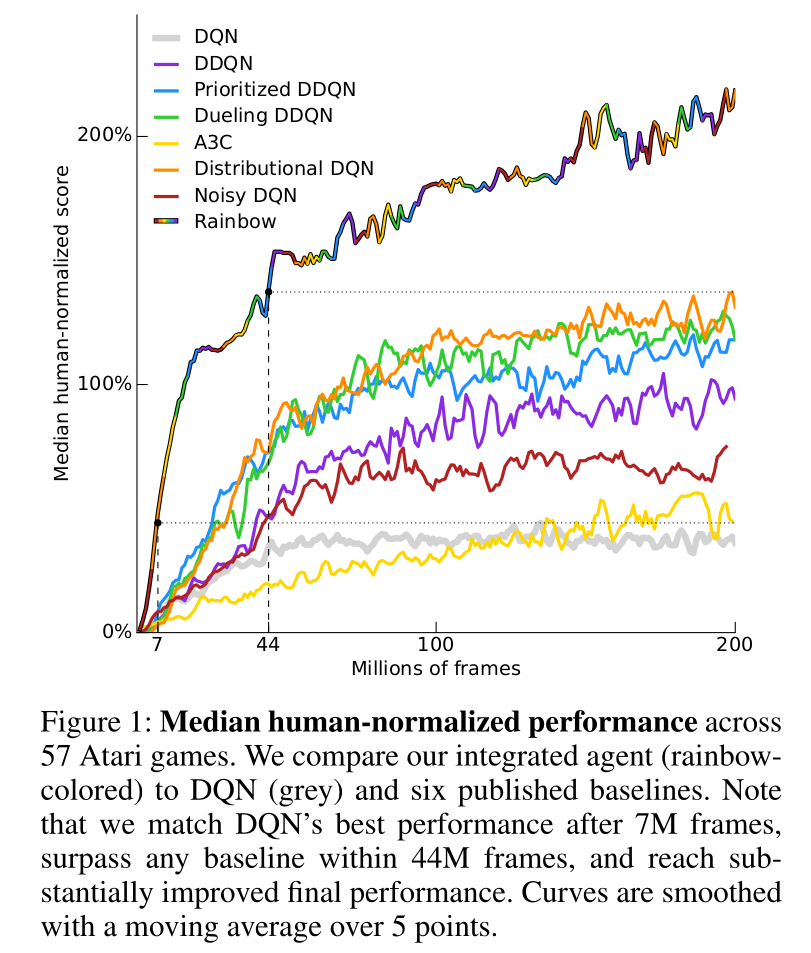

The Rainbow network combines all DQN improvements and outperforms each of them. Source: (Hessel et al., 2017).

Hessel, M., Modayil, J., van Hasselt, H., Schaul, T., Ostrovski, G., Dabney, W., et al. (2017). Rainbow: Combining Improvements in Deep Reinforcement Learning. http://arxiv.org/abs/1710.02298.

Mnih, V., Badia, A. P., Mirza, M., Graves, A., Lillicrap, T. P., Harley, T., et al. (2016). Asynchronous Methods for Deep Reinforcement Learning. in Proc. ICML http://arxiv.org/abs/1602.01783.

Niu, F., Recht, B., Re, C., and Wright, S. J. (2011). HOGWILD!: A Lock-Free Approach to Parallelizing Stochastic Gradient Descent. in Proc. Advances in Neural Information Processing Systems, 21–21. http://arxiv.org/abs/1106.5730.

Sutton, R. S., and Barto, A. G. (1998). Reinforcement Learning: An introduction. Cambridge, MA: MIT press.
